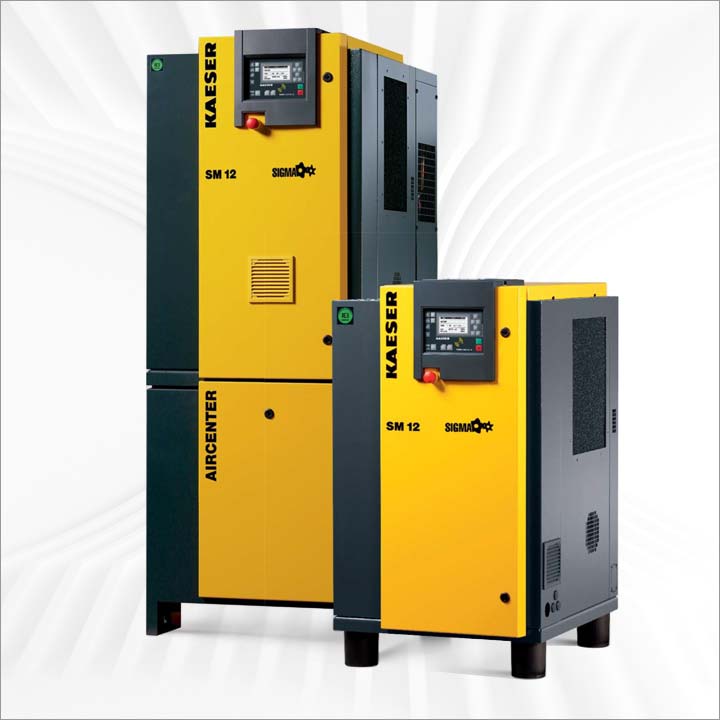

SM Series - Rotary Screw Compressor
SM Series compressors offer our customers the opportunity to make long term savings
Within businesses of all types and sizes where compressed air is a requirement, the SM series offers maximum availability and efficiency. AEP customer's expectations of functionality from this HPC range are often exceeded in the performance they achieve. More compressed air for lower power consumption is combined with an ease of use and simple maintenance. The result of these features is exceptional versatility and an environmentally responsible design.
Key benefits of the SM Series include:
- More air for your money - Our HPC engineers have boosted the performance of the SM Series. This has been achieved both through airend optimisation and by minimising internal pressure losses.
- Low energy consumption - Compressor energy efficiency will depend on the entire costs incurred throughout the system's entire service life. The energy taken to create the air our customers need for their business operations make up majority of the costs incurred. The M Series has been designed with optimum energy efficiency in mind.
- Logical and user-friendly design - The new SM Models share a logical and user-friendly design throughout. For example, the left-hand enclosure panel can be removed in a series of simple steps to gain system component visibility.
- Intelligent modular design - From the standard model, our mid-range SM system is equipped with an integrated high efficiency refrigeration dryer. AIRCENTRE models have the addition of an under-slung air receiver. SM system options offer AEP Compressed Air customers excellent flexibility and performance capabilities. In addition, all versions within this range are available with an integrated frequency converter for variable speed control.
SM Series - System Specifications ...
SM Standard - the design is in the details

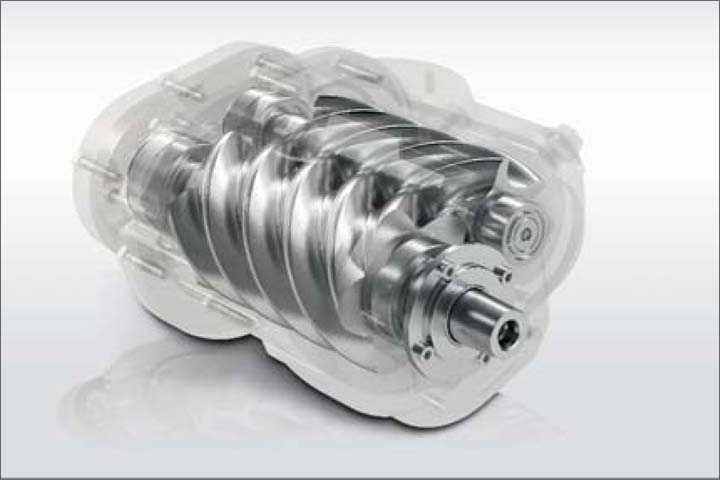

Sigma Profile Airend
Within every SX system lies a premium quality airend featuring SIGMA PROFILE rotors. HPC product engineers have managed to enhance performance and efficiency even further. The use of IE2 electrical drive motors has also contributed to additional energy savings.
Sigma Profile Airend
Within every SX system lies a premium quality airend featuring SIGMA PROFILE rotors. HPC product engineers have managed to enhance performance and efficiency even further. The use of IE2 electrical drive motors has also contributed to additional energy savings.
Maximum efficiency: IE3 motors
All KAESER SM Series rotary screw compressors are equipped with premium efficiency IE3 class drive motors.

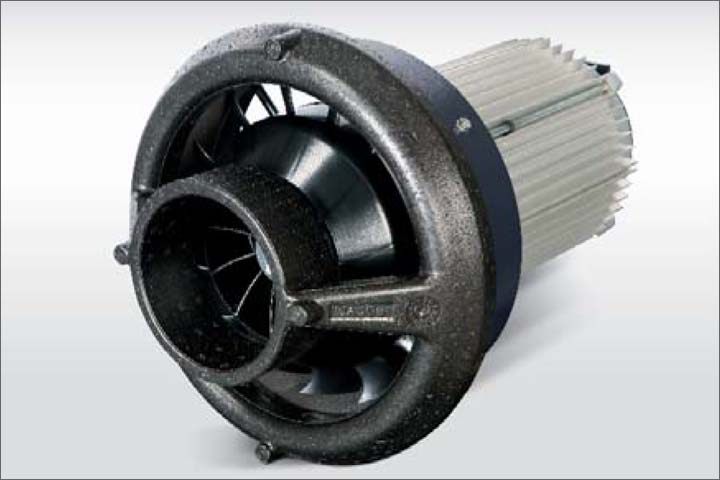

Dual flow fan
The dual flow fan supplies cooling air to both the drive motor and the entire package. Crescent-shaped fan blades help keep operating sound levels to an absolute minimum.
...

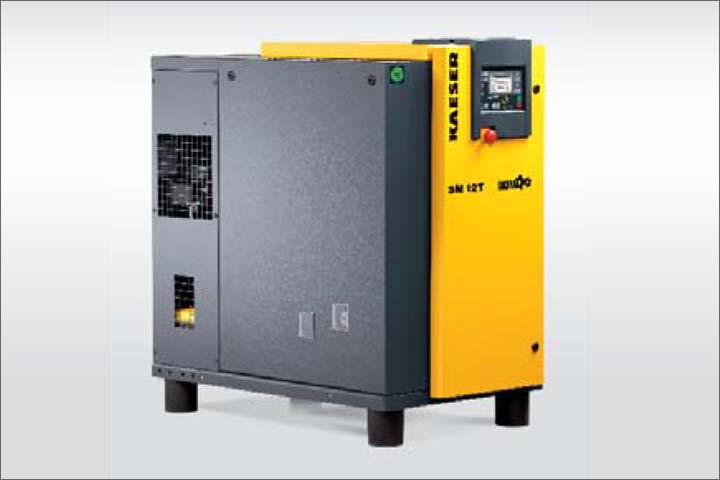

SM 'T' (SFC) Series - available with refrigeration dryer and variable speed control

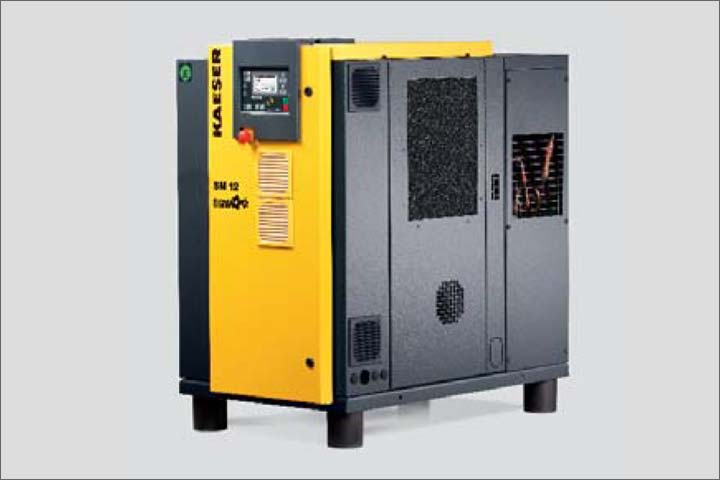

SM with energy-saving dryer
The compressed air refrigeration dryer is installed in a separate enclosure to prevent exposure to heat from the compressor package. The automatic dryer shutdown feature further aids energy-efficient performance.
Operational variable speed control
The use of variable speed control can provide definite advantages for specific applications. This is why the SM 12 is also available with this feature. The frequency converter is integrated into the compressor system's control cabinet.
Even quieter
The new cooling system provides outstanding cooling performance and enables optimum sound-proofing. Normal conversation can take place right next to the running compressor.

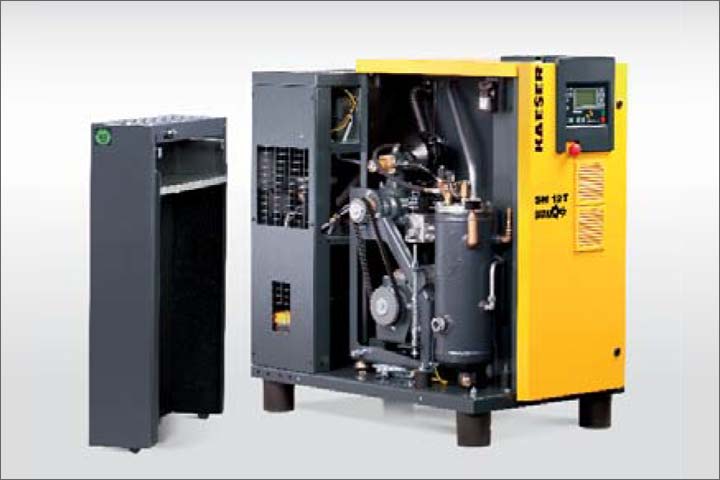

Maintenance friendly
All maintenance work can be carried out from one side of the unit. The left housing cover is easily removed to allow excellent component accessibility.
...

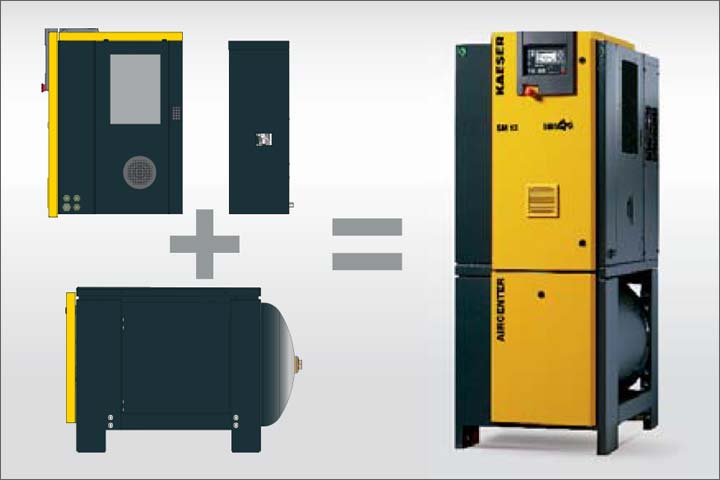

SM AIRCENTRE - the compact and efficient compressed air package
Connect and go
Simply connect this compact compressed air package to the power supply and compressed air distribution network. That's it, you are then ready to go.

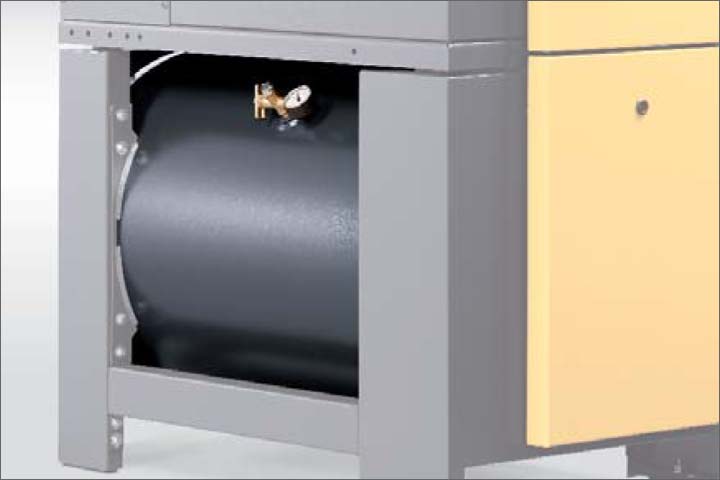

Durable air receiver
The 270-litre air receiver is especially designed for installation in AIRCENTRE systems. All inner and outer surfaces are coated to provide excellent corrosion protection and ensure long service life.

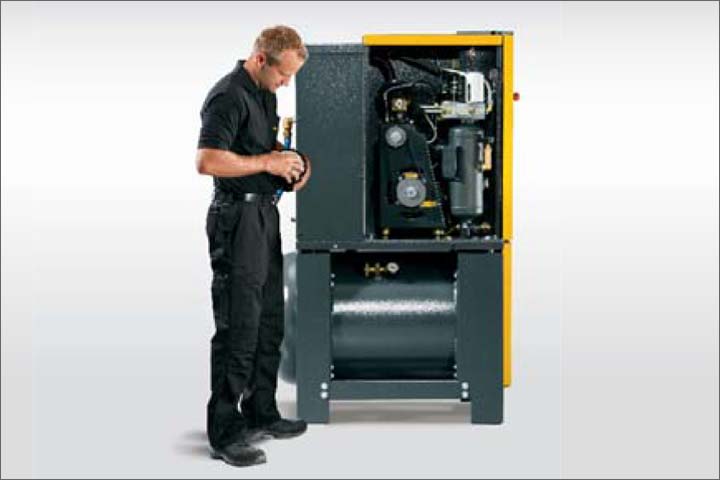

Service friendly design
The left-hand housing cover is easily removed to allow easy accessibility to all service points. Inspection glasses allow convenient inspection of fluid levels and drive belt tension whilst the unit is in operation.

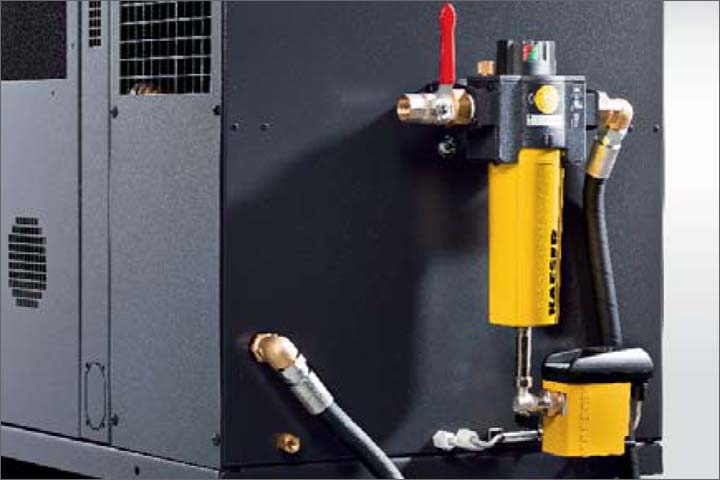

KAESER FILTER for pure, clean air
Within minimal differential pressure and ensuring optimum efficiency. KAESER FILTER (option) products are able to provide compressed air of all purity classes as per ISO 8573-1 and allow quick and easy filter element changes. They are available in four filter grades.
